  • Individual Soldier-Carried Detection and Collection Equipment

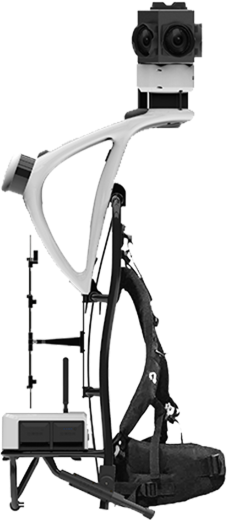

    Individual Soldier-Carried Detection and Collection Equipment is a high-precision mobile mapping system with a compact modular design. The whole system consists of three parts: data acquisition system, monitoring system and power supply system, which are connected by aerial plug.

    • Product Features

    Individual Soldier-Carried Detection and Collection Equipment, which integrates sensors such as multi line lidar, panoramic camera, inertial navigation equipment and synchronization controller, specializes in high-precision 3D laser panoramic data acquisition for indoor, outdoor, or underground scenes. It is widely used in various scenarios, such as shopping malls, underground garages, substations, subways, tunnels, forestry areas, mining areas, warehouses, etc.

    • Suitable for various environments

      Suitable for various complex indoor and outdoor environments, including enclosed underground spaces, areas with no GNSS signals, uneven terrain, and slopes.

    • Multiple modes

      Multiple flexible data collection modes, including wearable and pushcart-based collection.

    • Easy to transport

      Easy and portable equipment installation and transportation, compatible with high-speed rail transport.

    • Automatic collection and processing

      Fully automated data collection and processing software that automatically matches point cloud data with image data.

    • Convenient

      No need for base stations or initialization calibration.

    • Automatic adjustment

      Automatic adjustment of brightness, white balance, and other image parameters.

    • High data collection efficiency

      High data collection efficiency, capable of collecting data from 120,000 square meters of space per hour.

    • Long-time operation

      Built-in batteries, supporting over 5 hours of continuous operation.

    • Mature software platform

      Mature software platform with no additional charges for future software use.

    • Real-time viewing

      Real-time viewing of captured panoramic images and point cloud data.

    • Real-time monitoring

      Real-time monitoring of remaining battery capacity and storage space.

    • Provides platform APIs

      Provides platform APIs for customization and development.

    Product Spotlight

    • 01
      Flexible
      Supports wireless upload, cloud storage and multi- terminal browsing .
    • 02
      Fast
      Quickly collect spatial location data and attribute data.
    • 03
      Real Data
      All data is collected and processed automatically, without a third-party.
    • 04
      High Precision
      Relative measurement accuracy ≤ 2cm (target object distance: 1.2m-100m).

    Product Applications

    Application Value
    “Backpacked MMS” can quickly collect high-precision laser point clouds of power grids, which can accurately measure the distance and spacing between power stations, buildings, vegetation, cross cables and other power grid facilities and power lines to detect whether the grid design meets the specifications and whether the spacing meets safety requirements. The collected high-definition panoramic images enable inspection personnel to complete meter readings and abnormal situation discriminations for line facilities and equipment.
    Application Value
    “Backpacked MMS” can quickly collect high-precision laser point clouds of power grids, which can accurately measure the distance and spacing between power stations, buildings, vegetation, cross cables and other power grid facilities and power lines to detect whether the grid design meets the specifications and whether the spacing meets safety requirements. The collected high-definition panoramic images enable inspection personnel to complete meter readings and abnormal situation discriminations for line facilities and equipment.
    Application Value
    “Backpacked MMS” can quickly obtain 3D laser point cloud data of forestry environment, which can carry out forestry resource survey and management, analysis of forest type and distribution, single wood measurement and 3D modeling, etc. It has the characteristics of high collection efficiency and high precision, and will not cause damage to forestry environment.
    Application Value
    For some topographic complex environments such as mines and construction sites, traditional mapping methods have problems such as high operational difficulty, difficult to reach some areas and low efficiency, etc. “Backpacked MMS” can give full play to the advantages of non-contact flexible acquisition, high operational efficiency, and can realize earthwork measurement, surface measurement, digital measurement, etc.
    Application Value
    In the underground garage environment where GNSS signals are lost, “Backpacked MMS” can achieve autonomous navigation and positioning without relying on GNSS signals through 3D-SLAM technology, and output 3D point cloud data with coordinate system to complete the acquisition and production of high precision maps of the underground garage with accuracy up to centimeter level, solving the positioning problem of the last mile of autonomous driving
    Application Value
    “Backpacked MMS” is capable of scanning bridges, ancient buildings and other buildings for complete high precision reconstruction, outputting point cloud models with spatial 3D morphology, and carrying out contactless measurements. It can be used for full aspect measurement of buildings, 3D modeling and simulation, BIM design and operation and maintenance management, bridge deformation monitoring, etc.
    Application Value
    “Backpacked MMS” is able to complete a comprehensive and realistic restoration of the crime scene and information preservation. Criminal investigators can use it to collect scene data and backup the bloodstains, murder weapon, footprints and other evidence left at the scene, without damaging the crime scene. Afterwards, the scene can be inspected and measured infinitely according to the 3D point cloud data, which provides strong support for crime solving and evidence collection.
